Dual fuel radiators can heat the bathroom with both central heating and electric power sources.
During the winter, dual fuel radiators can be run from your central heating system, in exactly the same way as a regular towel rail.
In the warmer months they can be solely powered by an electric element and turned on only when you absolutely need it, without engaging the central heating system in the house.
This flexible and cost-effective solution will help you choose the most efficient method of heating depending on the time of year.
Dimensions
Width: 400mm
Height: 1700mm
Tube Dimension : 22mm
Pipe Centres: Pipe Centres: 420mm outwards, 290mm inwards
Wall To Pipe Centres: 70-85mm
Projection From The Wall: 85-100 mm
Details:
Heat Output Btu: 2428 BTU/h
Heat Output Wattage: 712 W
Tube Layout 4+5+6+7+8=30 Tubes Total
Finish: Anthracite Grey
Design: Flat / Ladder
Material: Steel
Suitable for Bathroom , Kitchen , Toilet , Cloak Room , Utility room
Warranty 5 years on Radiator and 2 Years on Heating Element
What's In The Box:
4 x Wall Brackets
2 x Blanking Plug
1 x Bleeding Valve
1 x Selected Electric element
A pair of angled valves (for a mix with straight valves - please contact us or leave a message at the checkout)
1x T-piece connector
1 x Instructions
Please Note: – All our heat output figures (BTU’S) are listed at Delta T50

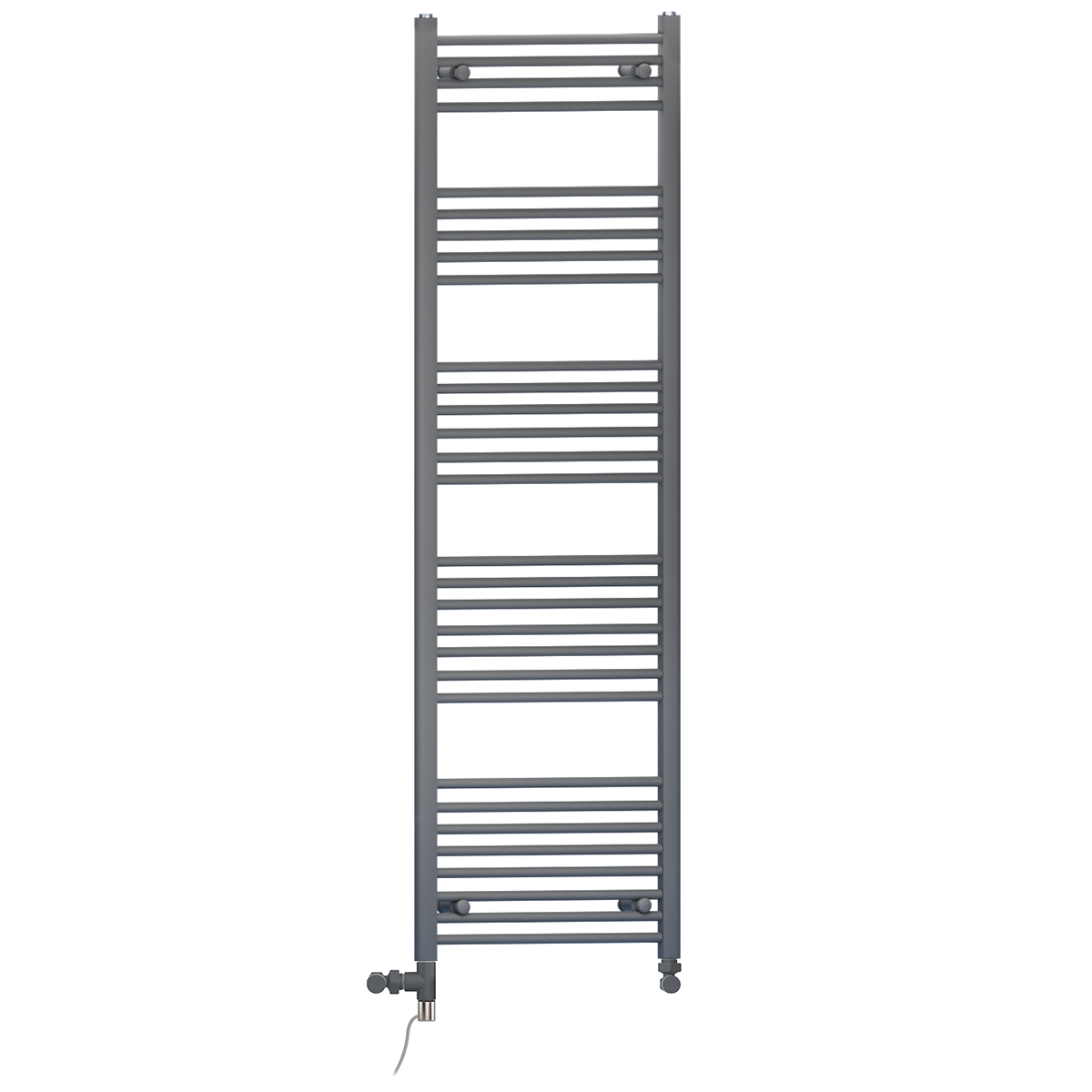

Standard Electric Element
FUNCTIONALITY The Manual Electric Element is a basic, simple heating element. The Manual Electric Element has built-in protection against overheating and is fitted with a bimetal temperature limiter. The device is available in a wide range of power outputs.
INTELLIGENT BUILDING SYSTEMS The Manual Electric Element is suitable for connection to external timers and intelligent building systems.
SAFETY The Manual Electric Element has an exceptionally high degree of moisture ingress protection and is fitted with a thermal fuse to prevent overheating of the radiator.
DESIGN The Manual Electric Element has a stainless steel housing. It does not have an on/off switch on its housing so it must be controlled externally either by a timer or switched fused spur. A version with a switch located on the plug is available.

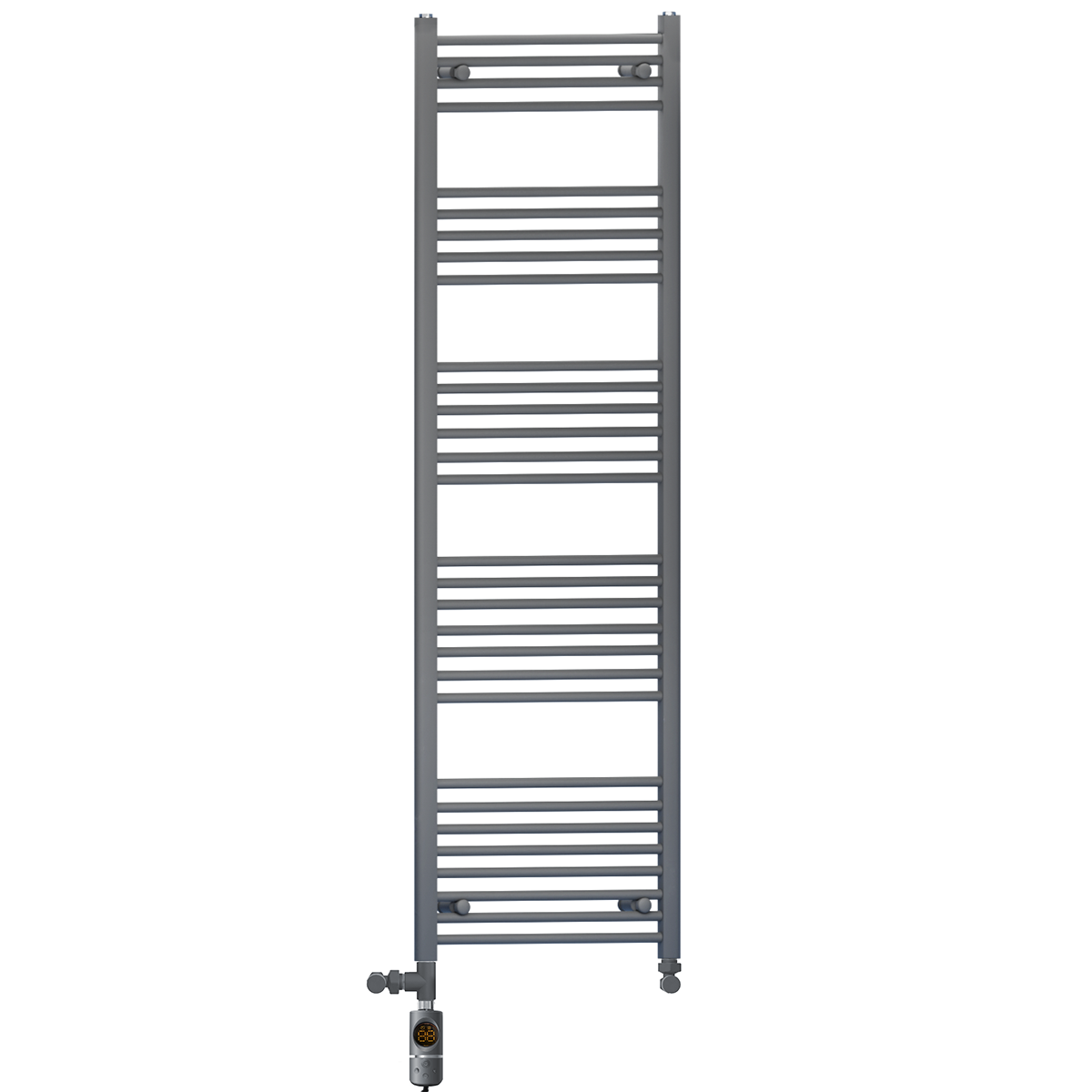

AF Thermostatic Electric Element
FUNCTIONALITY The heater with electronic thermostat type AF is a device used for heating the systems such as radiators in bathrooms, towel dryers, or as additional element for already existing systems of radiator-heating. It can also be used with other heating elements and devices.
SAFETY
Completely protected from eventual over-heating by thermic safety fuse.
FEATURES
- Possibility of fine temperature regulation
- ON/OFF Button + Timer mode 2h/4h/6h/8h
- Digital Display
- Child-Lock (activated by pressing up and down together)
- Completely protected from eventual over-heating by a thermic safety fuse
- 1.2mt Flex Cable Attached
