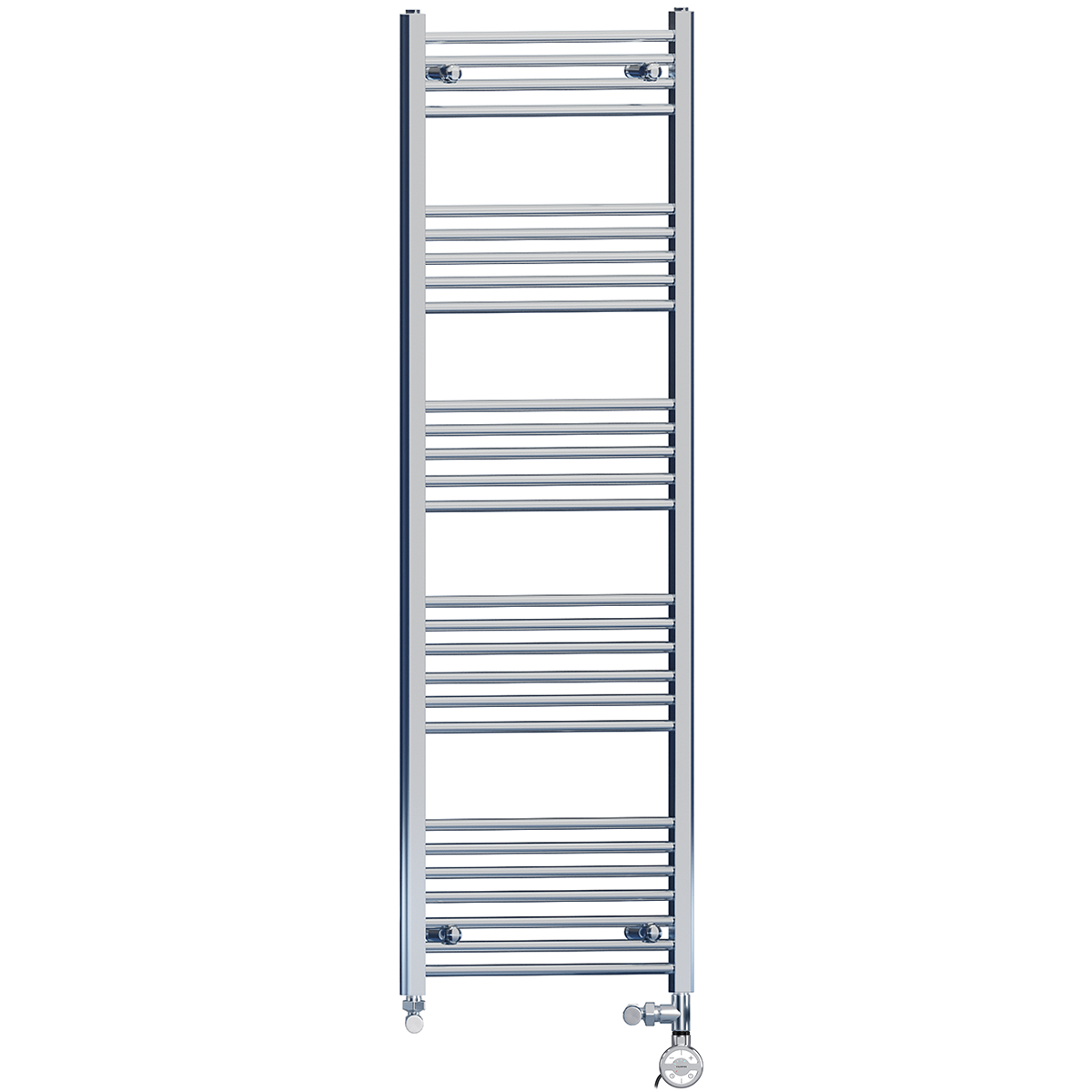

Dual fuel radiators can heat the bathroom with both central heating and electric power sources.
During the winter, dual fuel radiators can be run from your central heating system, in exactly the same way as a regular towel rail.
In the warmer months they can be solely powered by an electric element and turned on only when you absolutely need it, without engaging the central heating system in the house.
This flexible and cost-effective solution will help you choose the most efficient method of heating depending on the time of year.
Measurements:
Width: 400mm
Height: 1600mm
Tube Dimension : 22mm
Pipe Centers: 355 mm - Original Pipe Centres Without a Dual Fuel Element ; 420 mm - With a Dual Fuel Element Outwards or 290 mm - With a Dual Fuel Element Inwards (all measurements with dual fuel elements on are approximated)
Wall To Pipe Centers: 70-85 mm
Projection From The Wall: 85-100 mm
Details:
Heat Output Btu: 1526 BTU/h
Heat Output Wattage: 447 W
Tube Layout: 4 + 5 + 5 + 6 + 7 = 27 Tubes Total
Finish: Sparkling Chrome
Design: Flat / Straight
Material: Steel
Suitable for Bathroom , Kitchen , Toilet , Cloak Room , Utility room
Warranty 5 years on Radiator and 2 Years on Heating Element
What's In The Box:
4 x Wall Brackets
2 x Blanking Plug
1 x Bleeding Valve
1 x Selected Electric element
A pair of angled valves (for a mix with straight valves - please contact us or leave a message at the checkout)
1 x T-piece connector
1 x Instructions
Please Note: – All our heat output figures (BTU’S) are listed at Delta T50
Standard Electric Element
FUNCTIONALITY The Manual Electric Element is a basic, simple heating element. The Manual Electric Element has built-in protection against overheating and is fitted with a bimetal temperature limiter. The device is available in a wide range of power outputs.
INTELLIGENT BUILDING SYSTEMS The Manual Electric Element is suitable for connection to external timers and intelligent building systems.
SAFETY The Manual Electric Element has an exceptionally high degree of moisture ingress protection and is fitted with a thermal fuse to prevent overheating of the radiator.
DESIGN The Manual Electric Element has a stainless steel housing. It does not have an on/off switch on its housing so it must be controlled externally either by a timer or switched fused spur. A version with a switch located on the plug is available.
MOA Thermostatic Element
Our MOA heating element unit has been designed with special attention to detail. It has a minimalistic design and is available in many colours while being highly functional and ready to use. MOA's 2-hour timer gives you the comfort of not having to worry about turning off the controller. Large, user-friendly buttons as well as current and set temperature indication system, make MOA's use even easier and more intuitive. The device has a short circuit and double over heating protection. MOA's Antifreeze function protects the heating medium temperature from dropping below 5-7°C.
MOA is the I class heating element.
FUNCTIONALITY
The MOA offers 5 temperature settings ranging from 30°C to 60°C. It is equipped with an electronic temperature sensor that guarantees precise temperature control. The MOA displays the currently set temperature level and the status of the heating cycle using an LED indicator. The heating element has a very low power consumption in a standby mode.
DRYER FUNCTION This function allows the setting of a higher heating power for two hours, after which the device returns to the previous state.
INTELLIGENT BUILDING SYSTEMS In the event of a power failure the MOA remembers its previous settings therefore making it suitable for connection to external timers and intelligent building systems.
SAFETY The MOA is equipped with ‘frost’ protection (ANTIFREEZE). It also has a double protection against overheating of the radiator and displays a warning in case of malfunction It has an active safety feature in case of operation in a dry radiator.
AF Thermostatic Element
FUNCTIONALITY The heater with electronic thermostat type AF is a device used for heating the systems such as radiators in bathrooms, towel dryers, or as additional element for already existing systems of radiator-heating. It can also be used with other heating elements and devices.
SAFETY
Completely protected from eventual over-heating by thermic safety fuse.
FEATURES
- Possibility of fine temperature regulation
- ON/OFF Button + Timer mode 2h/4h/6h/8h
- Digital Display
- Child-Lock (activated by pressing up and down together)
- Completely protected from eventual over-heating by a thermic safety fuse
- 1.2mt Flex Cable Attached
